Hello all,

Even though I am in the middle of several projects, including refitting two of my boats, I can't resist starting a new one. I am sure that I am not the only one with this affliction, I get bored quickly and jump from project to project. To keep them moving, I mostly work simultaneously.

So here goes, my first ever Build Blog, bear with me....
Picked the Springer Tug as it is very simple and it will just be used ss a backup recovery vessel. I intend to build it a zero cost from my parts box and scrap wood pile. I put together my extra props, driveshaft, gearbox, motor, esc and RX. May have to buy a SLA Battery to get descent run time.

Started last evening by making a template based on the plan in photo, credit goes to hull designer, see photo.

Then I determined my motor location and Drive Line Angle so I could design the stuffing tube. Constructed that the same night using a 3/16" SS steel drive shaft. Bronze bushings from local hardware store and brass tubing from my supplies. See photos...

Had the 500dc motor, Master Airscrew Gearbox, drive shaft, coupler and 2" brass prop. More to come.....
Joe

Springer build log for website

Hello all,
Even though I am in the middle of several projects, including refitting two of my boats, I can't resist starting a new one. I am sure that I am not the only one with this affliction, I get bored quickly and jump from project to project. To keep them moving, I mostly work simultaneously.

So here goes, my first ever Build Blog, bear with me....
Picked the Springer Tug as it is very simple and it will just be used ss a backup recovery vessel. I intend to build it a zero cost from my parts box and scrap wood pile. I put together my extra props, driveshaft, gearbox, motor, esc and RX. May have to buy a SLA Battery to get descent run time.

Started last evening by making a template based on the plan in photo, credit goes to hull designer, see photo.

Then I determined my motor location and Drive Line Angle so I could design the stuffing tube. Constructed that the same night using a 3/16" SS steel drive shaft. Bronze bushings from local hardware store and brass tubing from my supplies. See photos...

Had the 500dc motor, Master Airscrew Gearbox, drive shaft, coupler and 2" brass prop. More to come.....
Joe

Day 2
Hello,
Next I traced the hull sides on to 12mm/1/2" Baltic birch plywood from Woodcraft store. I nailed two pieces together prior to cutting so as to match.

I don't have a scroll saw so I built a table mount for a jigsaw that attaches to my homemade drill press table. Cut them together, but the jigsaw does not cut well in terms of verticality. So I clamped them in a vise and hand sanded till they matched and were at 90 degrees.

I showed my simple rig for the sabre saw / jigsaw table. if you need detail, just ask.

I also showed my custom made 4 1/2 table that I made because I could not find a scaled down table saw for model making. (Could not afford, I am retired and have a low budget.

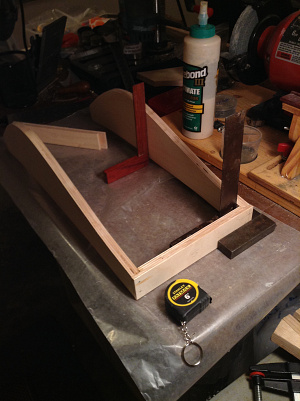

Glued up the sides and ends tonight with Titebond 3, temporary nails to help hold it into place.

Note: As to any joints whether it be electronic, woodworking, etc., a good practice is to use this both adhesive and mechanical fastener. I swear by these as one or the other will eventually fail This is as simple as using a screw, nail or rod, and the appropriate adhesive.

Model building, as most will say is cheaper than therapy.
Joe

Hi,
Using 3mm Baltic birch plywood, I skinned the hull. Used Titebond III wood glue, bent by hand, drilled and tacked in place with small brads. I cut the bottom oversized so it was easier to position, after drying 16 hours I cut the edges flush with the sides using a Japanese pull saw.

Built the core for my rudder, see photos, solder my own arm as I did not have one. Used a 3/16" set collar, filed the surface to expose brass and solder a piece brass. Will drill the second hole later. Attached brass plate that will be inside the actual rudder, will build from either plastic or wood.

Next, laid out the placement of the stuffing tube, then drilled the hull then I built a motor mount from wood and added some green foam to limit mount vibration and sound transfer. Set the rudder post and block. Time to let everything overnight.
Joe

Merry Christmas to All!

Yesterday I made a brass strap to secure the motor, then aligned the drive shaft and stuffing tube. Tacked tube in place with a gel superglue, will be covered with epoxy later. Used a short piece of aluminum tube to help align the motor and shaft. A coupler will be placed here.

Cut some plywood pieces to create keel at the shaft tube. White stuff is marine epoxy by locktite, just enough to set everything. I will then coat and finish this assembly.

Finished the day's work by constructing a rudder, no photo yet.

Enjoy Christmas!
Joe

Hello,

Thinking about deck and pilot house designs. Good thing to do while the glue dries. The attach drawing found on the net is making me think about a front ramp as I like these workboats.

Just need to keep in mind that it also needs to be a rescue vessel.
There is always a need to rescue a sailboat at the pond.
Joe

Put together a pilot house based on some tugs I've seen. Just freelanced it as I went. I build a lot with styrene so I am used to just cutting and building. I use liquid styrene cement that fuses the materials together. See photo, will trim it out as I mount it, need to add some detail at roof and some Navigational lighting.

Put on on 3mm plywood deck, same as hull bottom. The deck is also curved (proper term is SHEAR) and I started to build up some wood edge at the opening. Will sand everything well, then start sealing and priming all surfaces.

Made a bracket for the rudder servo mount and an adjacent platform for the ESC and RX.

Ordered two 6v 5ah SLA batteries. I will wire in parallel to stay with 6v and get 10ah. I like to stay with 6 volts as I want the motor to run slow like a tug should. Will wire in an in-line fuse. Haven't decided where I will put switch, up high somewhere to avoid water. I will show the wiring once I get to it.

This build is going fast because it's a simple design, just what I was looking for. I work on it late afternoons and into the evening while I watch basketball games. About 4 hrs a day.

Looking forward to building the hatch and getting some primer started tomorrow.
Regards, Joe 👍

Last night I started on the large hatch that will cover the entire deck opening rather than several hatches, this is to keep with simple approach. The pilot house and whatever else I decide to add will be attached to this for easy removal and access for battery charging and maintenance. it's not as easy as a flat deck hatch as I curved the deck and wanted to curve the hatch as well. See photos, I cut curved sides, then I clamped it to blocks on the bench to bend , glued and let dry for 24 hours.

While that's setting up I started on building some tow bitts. These I am making from styrene that I had from my railroad scratch building. See two small for aft and 1 larger at the bow that is in progress.

In addition, I showed some shots of my Brooklyn Tug Bitts. These are heavy duty and were made of brass!

Still enjoying this simple build..... Joe

Hello, Not too many photos today as I am focusing on sealing the hull. Photo shows the gray primer in progress..... Haven't finalized the paint scheme yet, probably red, green, white, some gray. Thank you everybody for your interest, please ask questions, comments appreciated. if you see me doing something GOOFY, let me know...... Regards, Joe

Hello, first photo is of deck hatch, painted. Rather than watch paint dry, I went back to building the pilot house and the structure below it. Comments welcome...,.
Joe

My batteries arrived, could not find locally so ordered through Walmart online. Two - 6volt 4.5AH, wired in parallel to give me 6v @ 9AH. Used inline fuse, prior to switch, then on to the esc, a Dynamite Tazar 15 T marine type. On/off switch will operate from outside so hatch will not have to be removed.

Had some real nightmares trying to program this esc! Setup lights would not come on, went through all procedures, slept on it tried ecpvery website, tried again today, nothing. I was about to look into a new purchase, THEN LIKE MAGIC.... I mistakenly switched it to my zBrooklyn Tug mod on th TX which uses the same esc, and it startled me with the motor running and rudder moving. Everything worked great. So I just copied all of the settings into this build on the TX. HAPPY NOW

Photo shows the mass of wires that allows me to shift the batteries for final ballasting, they will be tucked away neatly as build is finalized. Regards, Joe
