Tica #2 of 4

Vivace Patrolboat

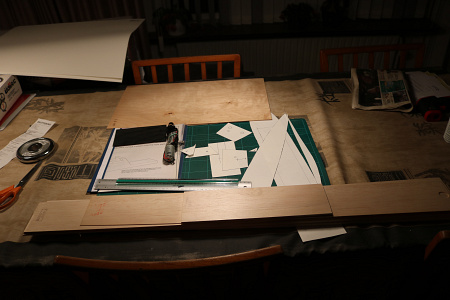

Started on a new "in between" model boat Vivace drawn by Glynn Guest.
I'll use a Chinese jet drive as designed by GG but with a minor modification 😁 Which is a BL Turnigy 3800KV 2627 running on 2S LiPo. (as I also did on my NQD Tear into Pro Mod.)
がいいねしました mturpin013 and rolfman2000 and
Tica #3 of 4

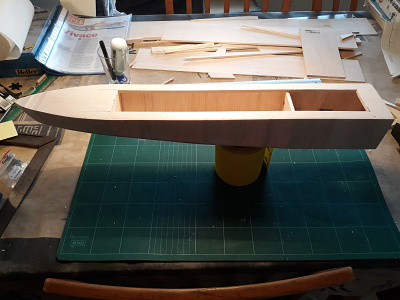

Now done with the Hull

Well done goofing around with the stockings 😁 (wife is ready to have me submitted to the loony bin 😎 and back to building, this is my first time with nylon stocking and epoxy. Think it looks great. Now one just have to wait for the epoxy to cure.
がいいねしました RNinMunich and mturpin013 and
Tica #4 of 4

Vivace Patrolboat More progress

Some more progress during the last days.

I was not totally good with surface of the stocking so I gave it at thin layer of P100 and cleared the surface with 120grid paper.

I soaked the spray-rails for a few hours and pined them to the hull and left the to the next day, then glued them with 2K epoxy.

The total weight is now 562g, GG estimate that the perfect weight would be 800g.

Hope to have it watertight before April 7th, as we have the monthly day at the indoor pool at that date.
がいいねしました Inkoust and Donnieboy and
Tica 最初の投稿

Vivace Patrolboat

Well not finished yet but ready for the first water test, first test in the bathtub is promising but the pool is closed due to some breakdown, but hey they promise 15°c tomorrow so we will enjoy some bread and coffee at the lake and get it tested 😎
BTW changed the 2.2Ah LiPo to a 5.2Ah to get a better balance, weight is now 762g.
