Scratch Built From plans circa 1959 in the American Modeler

I obtained the plans in PDF format and then had them traced and Laser cut into the correct plywood thickesses. For deck and Frames, and had a keel cut as well

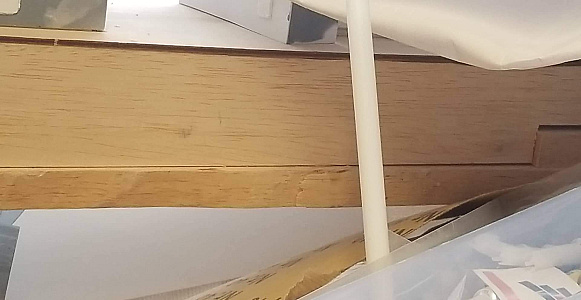

obtained the balsa Cut out the shape of the bottom planks and glued together, either side of the keel and set up the frames

The Deck was glued on and the side sheets cut to fit almost, then a lot of sanding was was done, in parts, and at different times

Please ignore the messiness of my workbench

When I was waiting for the hull to dry, I commenced building the superstructures

I had to return back to work in West Africa by this time, but here is a photo of her as she was left, almost, the side sheeting is glued in, and the superstructures require finishing.

I have obtained a 1/96 Fletcher Class Running Set from G.Sitek Propellers, they are about the right size for her at 1/76, and 2 Caldercraft resin profiled rudders 32x 25mm,

I also have a box of other bits, which my friend has 3d printed for me, Funnel, 3" guns, oerlikons, whaleboat and many other small parts,

When i get back to the UK in October, my first job, is to finish sanding the hull, coat it in Resin, and matting both inside and out, fill in outside with body filler, then sand it all smooth, looking at them i am going to mask the inner strakes of plating and spray with 4 or 5 coats of primer, before unmasking and spraying completely with red primer to repesent the plating on the actual vessel.

Then for the running gear and motors ( 2 x MFA 385 ) and rudders
